🚀 Installation, Updates & Air-Gap

sshs3 is a modern, security-conscious desktop client that pairs an authentic OpenSSH terminal with a dual-pane file manager, Amazon S3 object storage, and Kubernetes workload debugging inside a single desktop application.

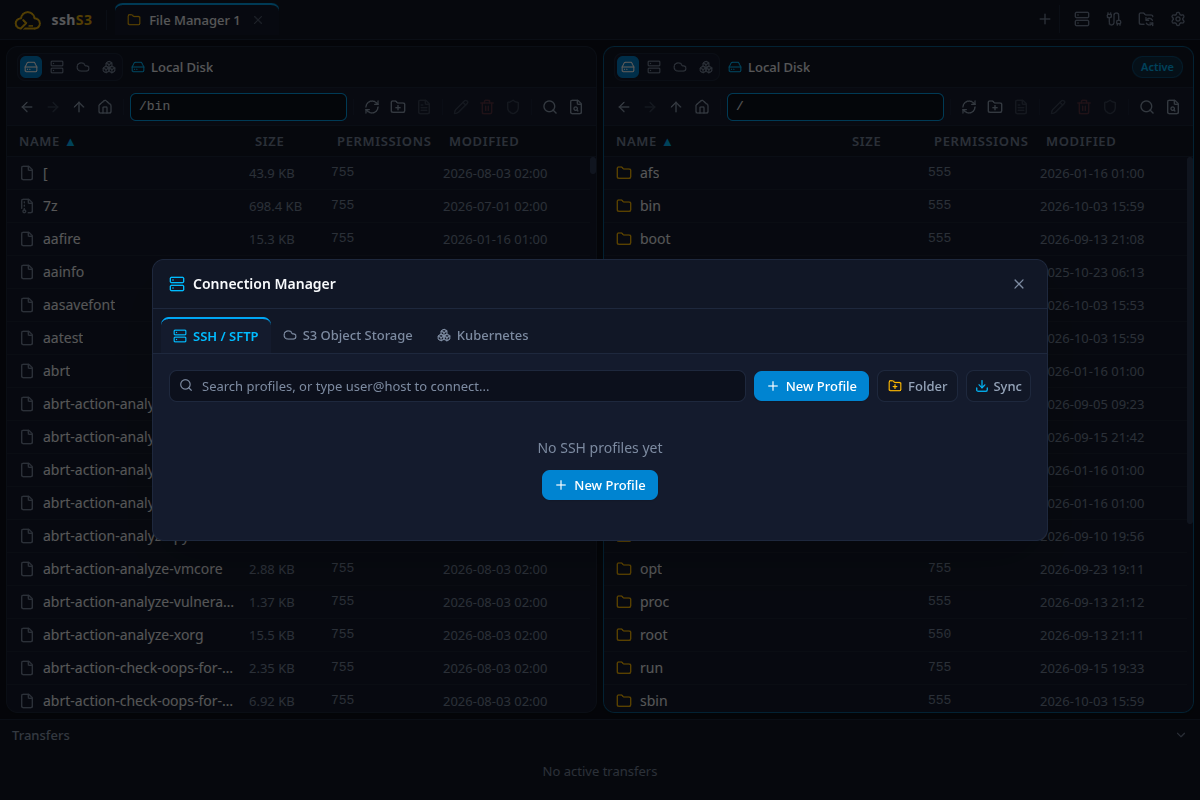

sshs3 start screen with quick connection shortcuts and clean workspace

Installation Packages

export SSHS3_DISABLE_UPDATES=1

🗂️ Connection Manager & Complete Field Reference

The Connection Manager provides unified configuration across all your remote servers, local shells, clusters, and buckets.

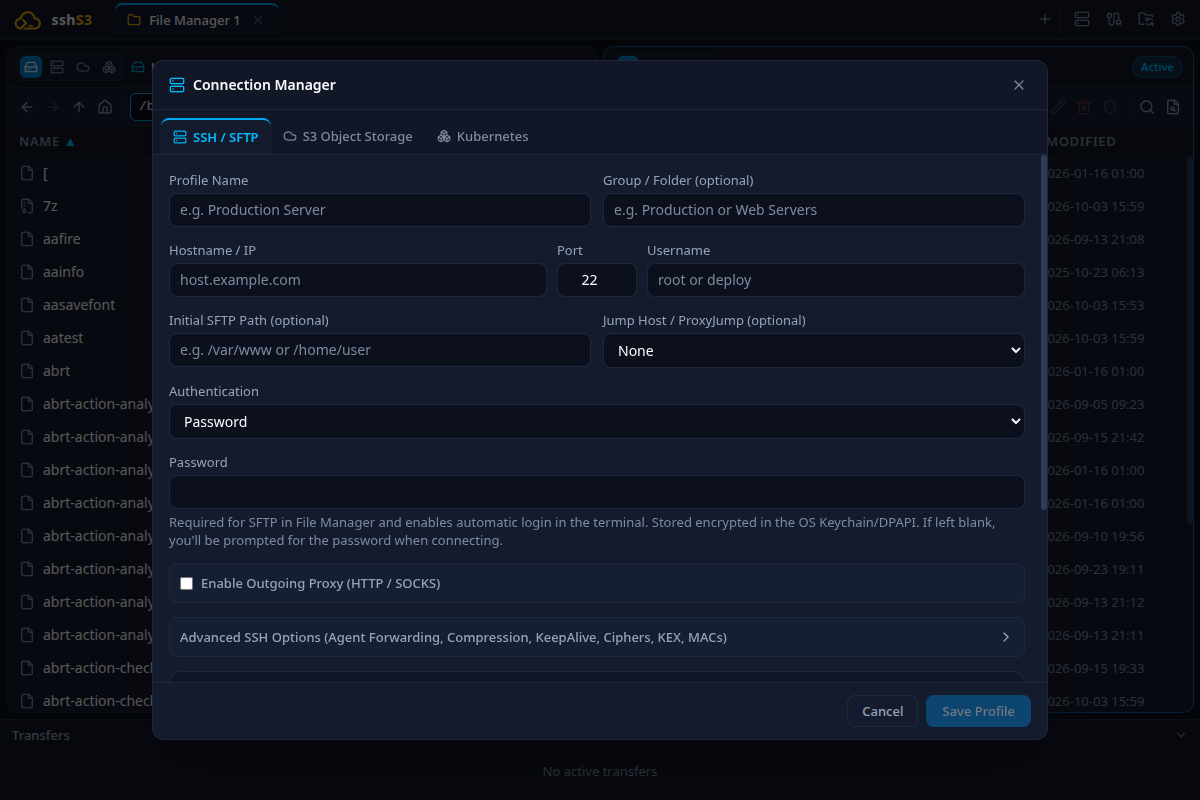

SSH profile creation dialog with basic parameters and authentication selector

SSH Profile Field Reference

Authentication Methods

sshs3 supports 5 distinct authentication methods:

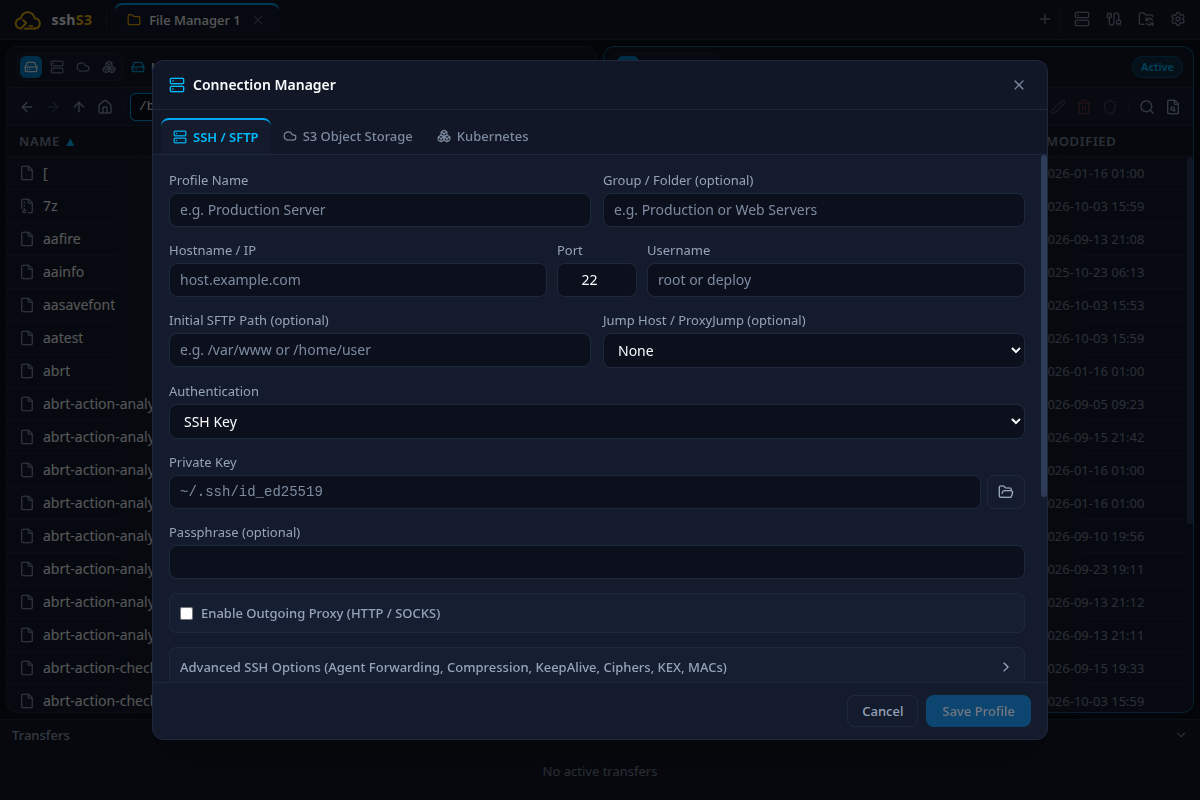

SSH Private Key configuration with passphrase encryption

• Password: Plain password prompt or stored encrypted in OS Keychain / DPAPI. Limitation: Interactive passwords cannot be sampled by the background Performance Bar on Windows.
• SSH Key: Select a private key file on disk (~/.ssh/id_ed25519, ~/.ssh/id_rsa) with optional passphrase.
• SSH Agent: Inherits keys currently loaded in your running system ssh-agent or Windows agent service.
• Smartcard (PKCS#11): Hardware authentication via PIV modules (p11-kit, libykcs11, OpenSC, Net iD). PIN is held ephemerally according to your chosen policy.
• FIDO2 / Security Key: Hardware keys (YubiKey 5). Supports Resident Keys scanned directly from the hardware token or generated in-app.

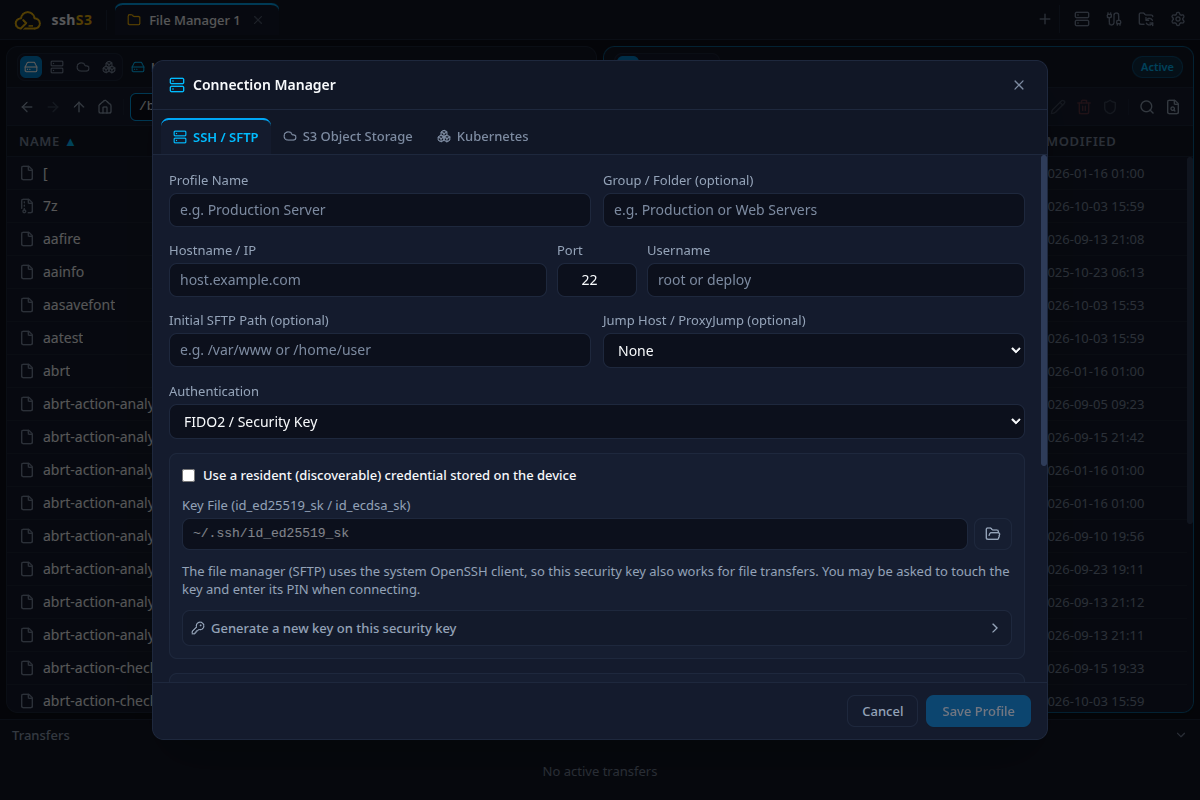

FIDO2 hardware security key configuration and in-app key generator

Access Check & Key Deployment (GUI)

5-stage Access Check timeline and multi-key ssh-copy-id deployment dialog

Click Install key… to deploy one or more public keys directly into ~/.ssh/authorized_keys in a single session. The 5-stage Access Check timeline diagnoses connectivity:

1. Reach Host: Verifies TCP connection.
2. Host Key: Confirms server key matches known_hosts.
3. Allowed Methods: Silently probes OpenSSH daemon for allowed auth methods without requiring PIN or touch.
4. Key Installed: Checks if public key is present in authorized_keys.
5. Login Works: Verifies login succeeds.

Advanced SSH Options

Finer protocol controls: Agent forwarding, X11, Compression, KeepAlive, and Ciphers

💻 Terminal, Tabs & Split Panes

sshs3 pairs an xterm-compatible terminal frontend with your genuine system OpenSSH process via node-pty.

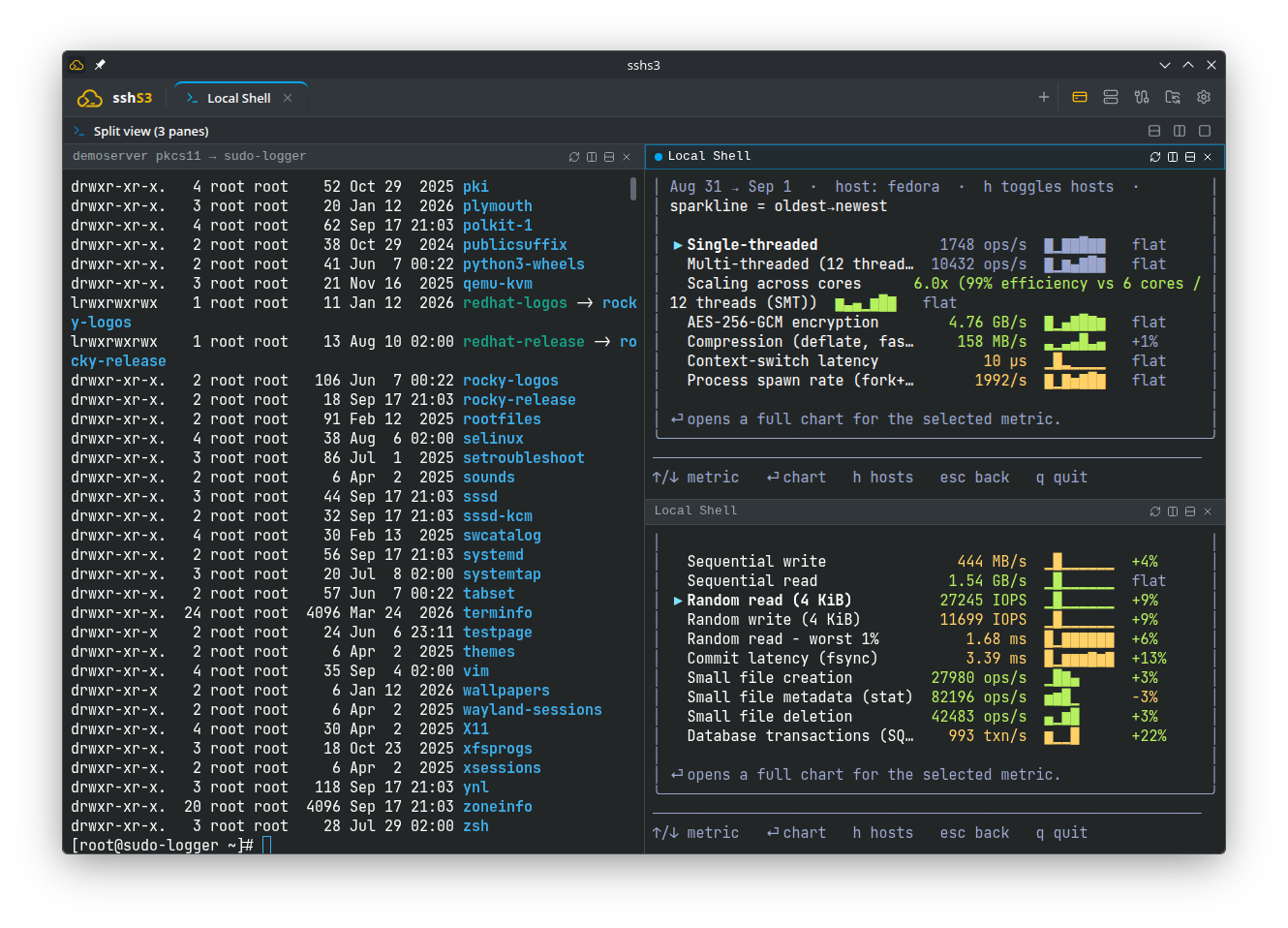

Arbitrary horizontal and vertical split panes with independent sessions

Konsole-Style Recursive Split Panes

Local Shells with Managed SSH_AUTH_SOCK

Opening a local shell tab automatically injects SSH_AUTH_SOCK. If you have unlocked a smartcard or YubiKey in an SSH session under Global PIN caching, that unlocked key is immediately available inside local shell commands (e.g. git pull or ssh) without asking for a second PIN.

⚡ Live Performance Bar (Opt-In)

The Performance Bar is an opt-in live telemetry strip above active terminals. It provides real-time system metrics without requiring third-party monitoring agents or extra logins.

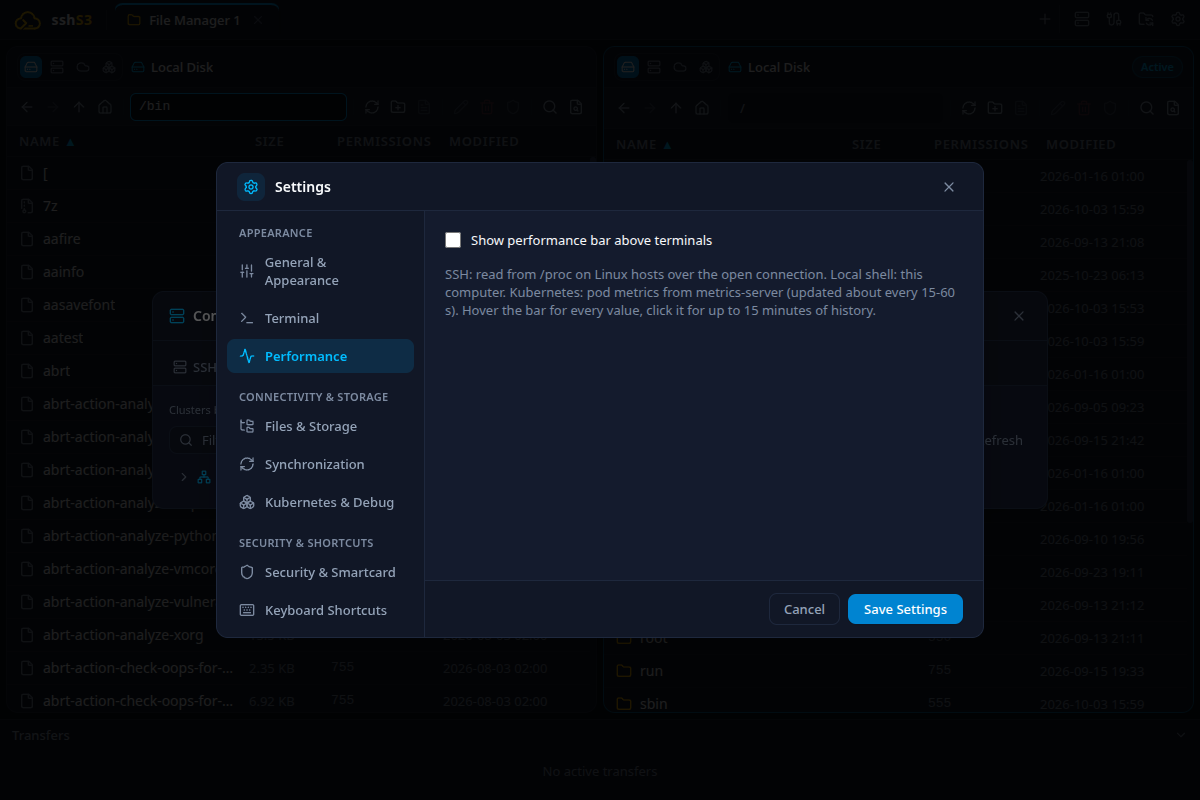

Performance Bar configuration: display layouts, sampling intervals, and metric selection

Sampling Architecture (Zero Extra Prompts)

• SSH Over ControlMaster: Metrics on Linux remote hosts are sampled over the existing OpenSSH ControlMaster socket using read-only /proc queries with BatchMode=yes. Never prompts for password, PIN, or physical touch.
• Windows SSH Fallback: Uses lightweight non-interactive SSH connections (key/agent only) throttled to at least 10s intervals. Ping is measured via TCP connect time.
• Kubernetes Pods: Reads from metrics.k8s.io for CPU and memory usage against requests and limits, restart counts, and ready status.

Visual Modes & 15-Minute Diagnostics Modal

Choose between Compact Text, Color-Coded Bars, or Mini Sparklines. Click the bar to open the 15-minute diagnostic modal with donut charts (CPU time, memory split), per-core utilization, and network sparklines.

☸️ Kubernetes & OpenShift Workloads

Inspect, manage, and debug Kubernetes and OpenShift workloads directly from sshs3 without requiring external plugins or daemonsets.

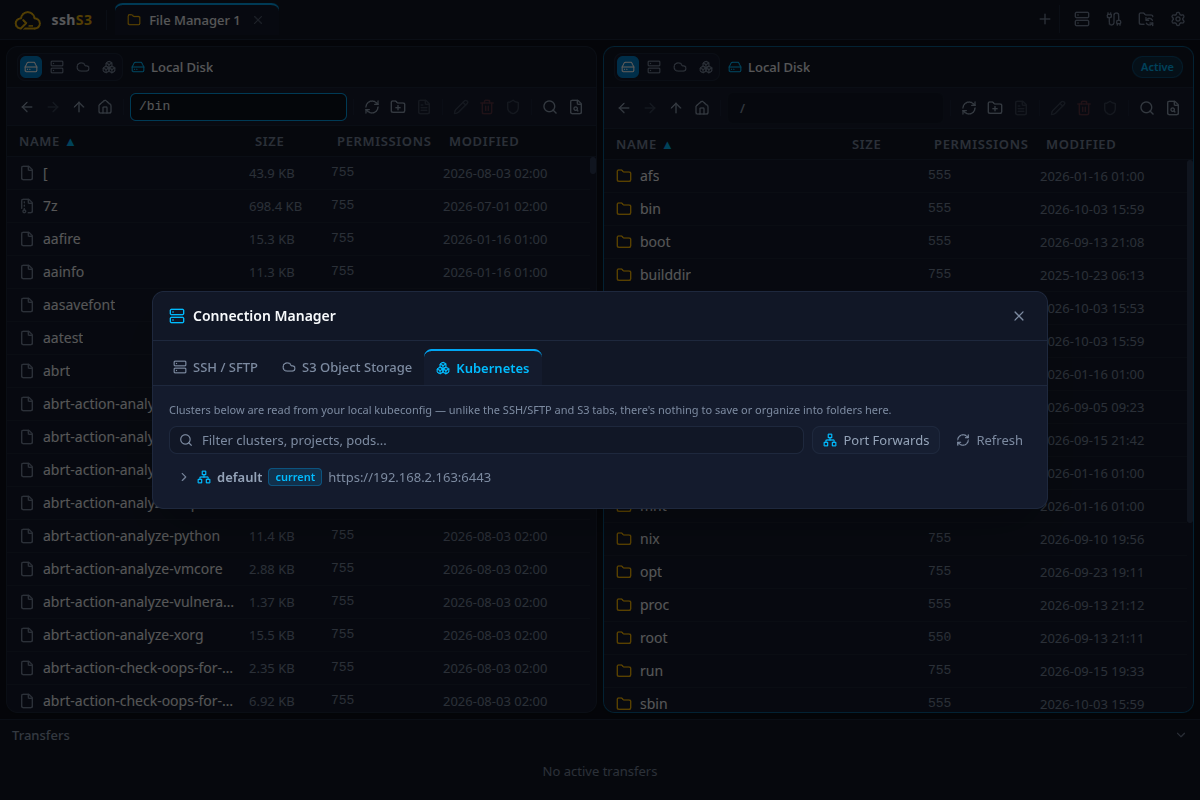

Contexts, namespaces, and pod hierarchy parsed directly from ~/.kube/config

Key Capabilities

• Interactive Container Exec (`tty`): Open interactive pseudo-terminals (sh, bash, or custom commands) into any pod container, fully integrated with split-view panes.
  ⚠️ Scratch / Distroless Containers

  Containers built from scratch or distroless images without a shell binary cannot launch interactive exec terminals.
• Live Log Streaming: Follow container stdout/stderr in real time with ISO timestamps, tail lines, container switcher, and support for crashed containers (previous: true).
• Container File Explorer (`K8sPodStorageProvider`): Browse, upload, download, and edit files inside running containers using the Dual-Pane File Manager.
• Port Forwarding: Forward remote pod or service ports to your local workstation loopback interface with live byte counters.
• OpenShift `oc login`: Paste an oc login command to authenticate directly into your kubeconfig.

📁 Dual-Pane File Manager (SFTP, Local, S3 & K8s)

sshs3 features a dual-pane file explorer capable of transferring data across any combination of protocols: Local ↔ SFTP, SFTP ↔ S3, Local ↔ S3, or Local ↔ Kubernetes Pods.

Dual-pane file transfers with transfer queue and conflict resolution

SFTP v3 Engine via OpenSSH

Carried directly over ssh -s sftp via your host system's OpenSSH binary. Features a 16 MB packet safety guard and concurrent chunking for multi-gigabyte transfers.

Recursive Search & Wildcards (Ctrl+F)

Press Ctrl+F in either pane to filter files. Check "Recursive" to search down subdirectories (up to 1,000 matches across 3,000 folders). Supports wildcards (*.log, data-?-final.csv) and avoids symlink loops automatically.

Built-in Monaco Editor & Directory Sync

• Monaco Code Editor: Edit remote files with syntax highlighting for JSON, YAML, Shell, Python, Dockerfile, etc. Press Ctrl+S to save directly back to the server.
• Directory Synchronisation: Compare two folders side-by-side with color-coded diff indicators and execute one-way or two-way synchronisation.
• Permissions & Chmod: Visual and octal file permission editor (e.g. 0755, 0644) with recursive options.

☁️ S3 Cloud Object Storage

Connect natively to Amazon S3, Cloudflare R2, MinIO, Wasabi, Backblaze B2, and custom S3 endpoints using AWS SDK v3.

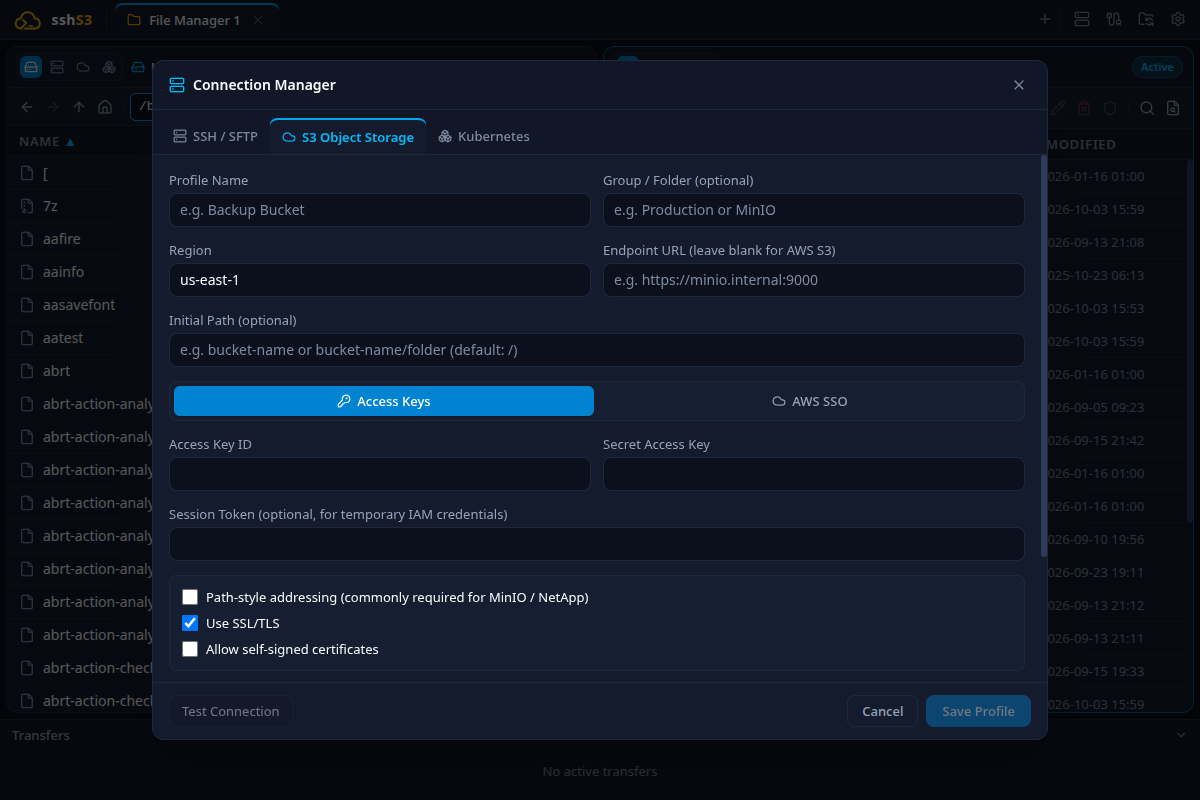

S3 profile form with endpoint configuration, path-style addressing, and encryption

S3 Configuration Field Reference

🛡️ Security, Hardware Keys & Smartcards

Security is the foundation of sshs3. All operations adhere strictly to zero-trust architecture.

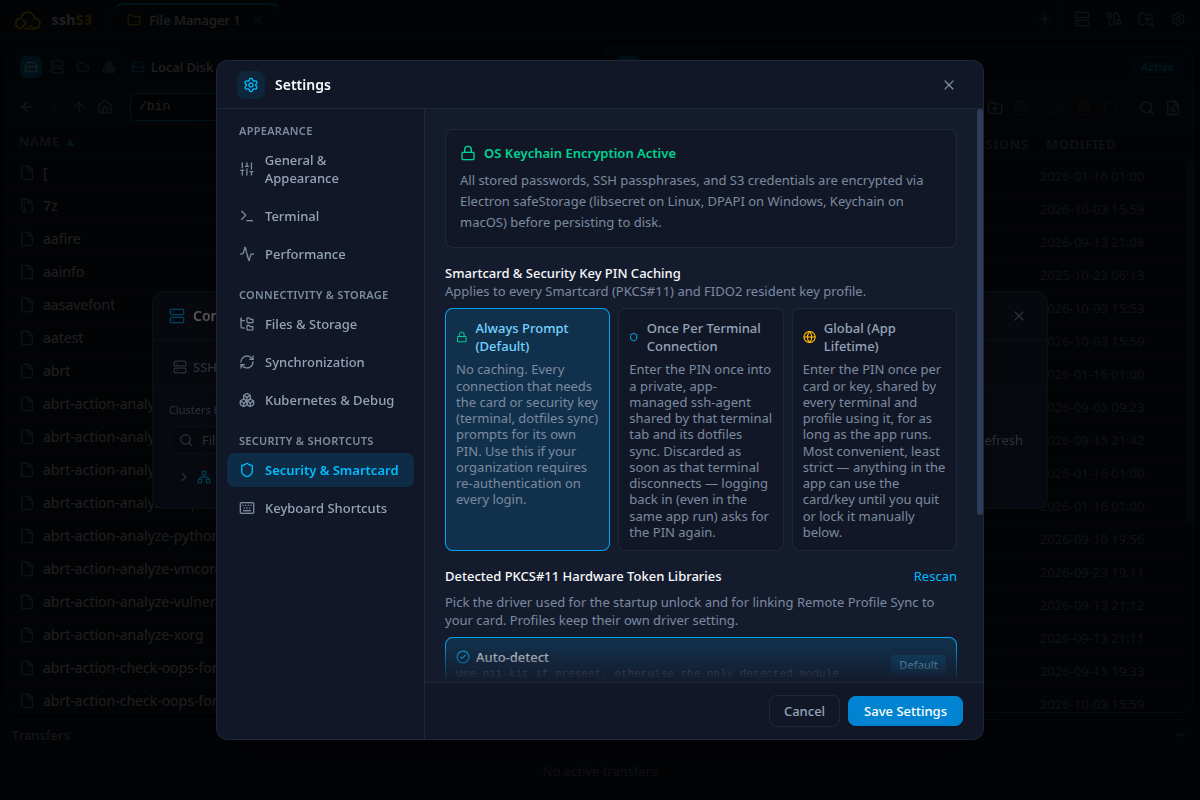

PIN caching policies and preferred PKCS#11 module configuration

Zero Private Key Extraction

Private keys are never accessible to the JavaScript or renderer layer:

• FIDO2 / WebAuthn Keys: Cryptographic signatures are calculated directly on the physical security chip (YubiKey). The private key cannot be extracted.
• Smartcards (PKCS#11): Keys reside inside the card's secure element; operations are delegated via p11-kit, libykcs11, or OpenSC.
• Software Keys: Read and processed exclusively by your operating system's native ssh binary.

Visual Touch-Presence Banner

When authenticating with a FIDO2 hardware key, sshs3 displays an animated touch-presence banner: "Touch your security key to authenticate..." so you always know when your key is waiting for physical touch.

Ephemeral PIN Caching Policies

• Per-Session (Default): PIN is requested on connect and discarded after the handshake.
• Global (App Lifetime): PIN is cached in volatile memory during the app run so you don't re-enter it for new tabs or split panes. Purged completely upon exit.
• Never: Prompts for PIN on every single cryptographic operation.

🔑 Public Key Deployment (`ssh-copy-id` GUI)

Install public keys onto remote servers effortlessly using sshs3's built-in key deployment tool and 5-stage Access Check timeline.

Idempotent Multi-Key Installation

• Select local .pub files, active SSH agent keys, smartcard/FIDO2 public keys, or paste a key string.
• Installs into ~/.ssh/authorized_keys in a single session; sets correct 0700 and 0600 permissions.
• Reports whether each key was "Installed" or "Already Present".
• Smart authentication: Uses your password or existing credentials for the setup and avoids attempting to authenticate with the key being deployed.

Offline / Copy Command Generator

Need to configure an offline server? Click Copy Command in the Access section to generate a ready-to-paste shell script:

mkdir -p ~/.ssh && chmod 700 ~/.ssh && echo 'ssh-ed25519 AAAAC3... user@box' >> ~/.ssh/authorized_keys && chmod 600 ~/.ssh/authorized_keys

🌐 Networking, Proxies & SSH Tunnels

Navigate complex topologies, jump hosts, and internal private subnets with ease.

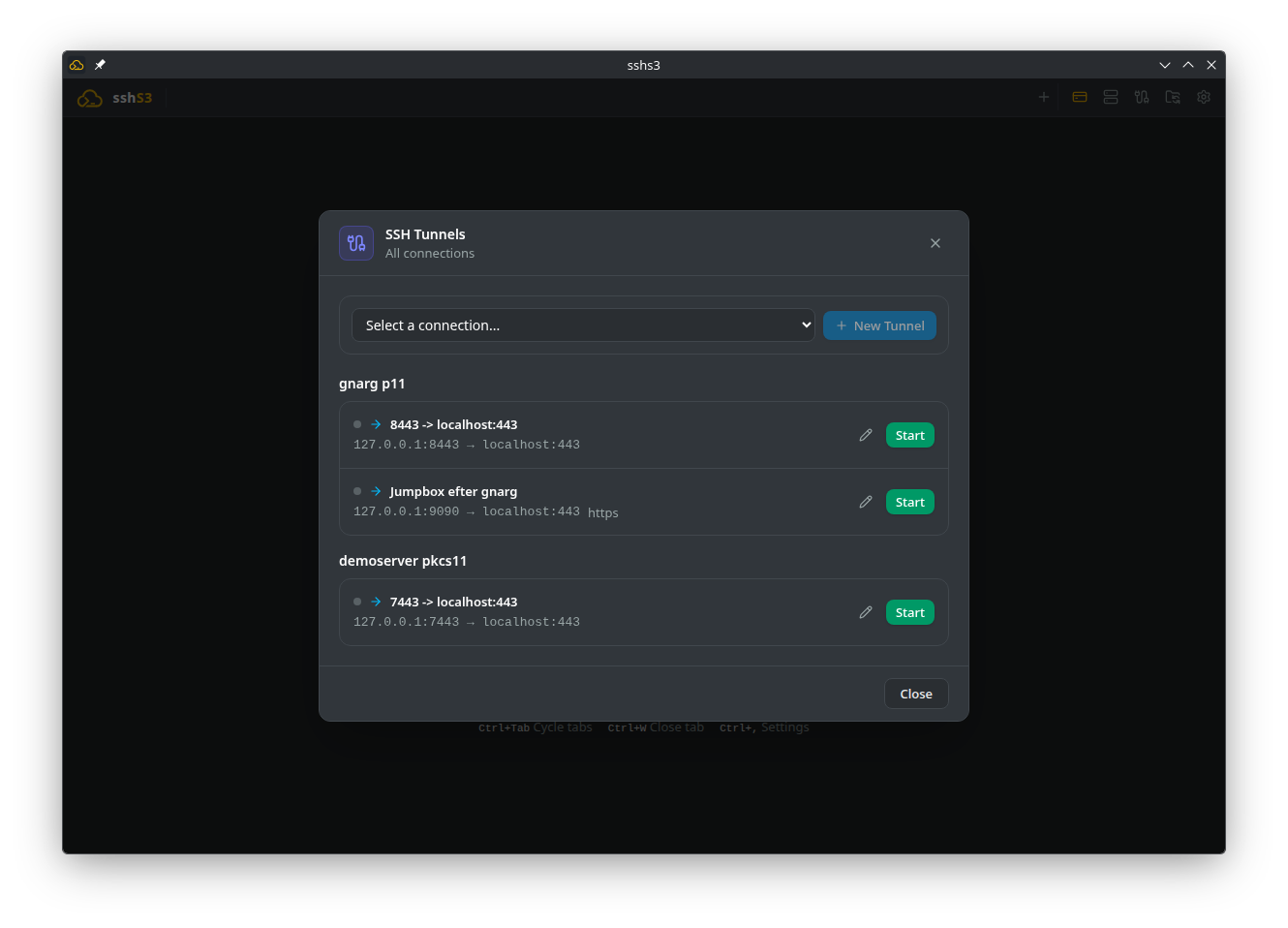

Independent background SSH Tunnels manager

ProxyJump & Bastion Chains

Configure one or more bastion jump hosts directly in the profile editor. Connections route through the bastions with full end-to-end encryption between your computer and the target server.

Standalone Background SSH Tunnels

• Local Port Forwarding (`-L`): Expose remote databases or web services on local ports.
• Remote Port Forwarding (`-R`): Expose local development servers to remote networks.
• Dynamic Port Forwarding (`-D`): Spawns a local SOCKS5 proxy (e.g. 127.0.0.1:1080) for routing web traffic.
• Independent Lifecycle: Tunnels continue running in the background even if you close all terminal tabs. Save and manage tunnel configurations with one click.

X11 GUI Forwarding

Launch graphical applications (e.g. xclock, virt-manager) on remote servers and render them locally. Windows builds bundle VcXsrv, automatically managing display routing.

🔄 Environment & Profile Sync

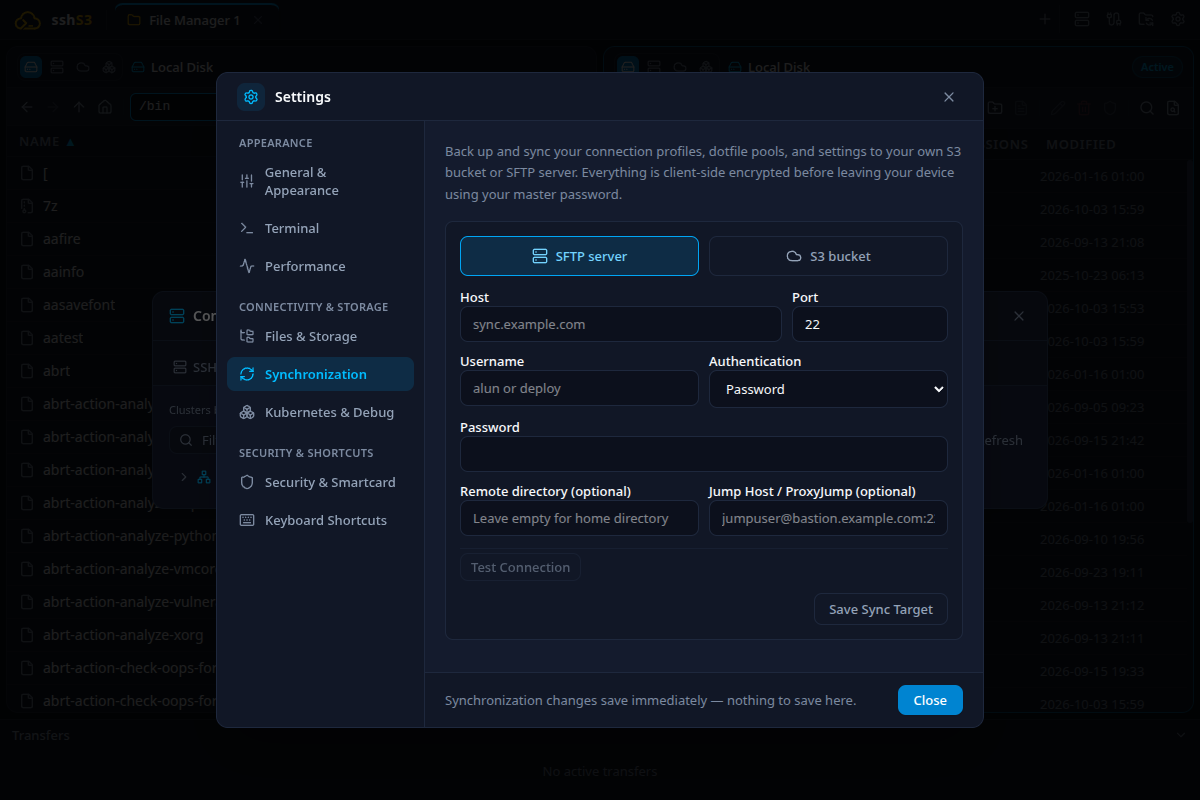

Client-side encrypted profile sync and dotfiles pool management

Dotfiles Pool Sync (Opt-In)

Maintain your favorite aliases, .bashrc, and .vimrc configurations on remote servers without cluttering persistent server configuration. The dotfiles pool stages your files into an isolated session directory upon login.

Remote Profile Sync ("Own Your Data")

Synchronise profiles across multiple workstations using your own storage backend (S3 bucket or private SSH host). All profiles are client-side encrypted with AES-256-GCM before transmission—no proprietary cloud required.

⌨️ Keyboard Shortcuts & Settings Reference

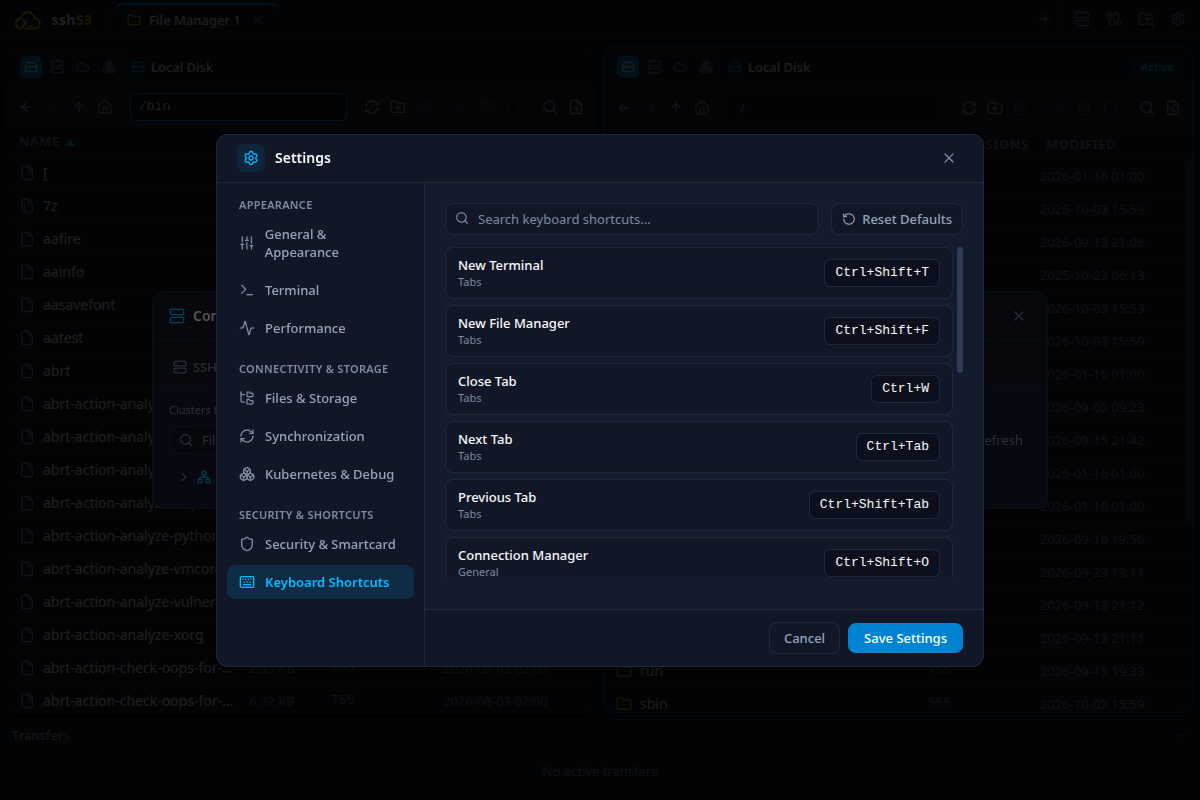

Built-in keyboard shortcuts reference inside application settings
