Dual-Pane File Manager & SFTP

Dual-Pane File Manager & SFTP Engine

The File Manager in sshs3 provides a high-performance, keyboard-driven dual-pane explorer modeled after Midnight Commander and WinSCP, modernized for hybrid cloud infrastructure. It enables transparent file operations across local disks, remote OpenSSH SFTP servers, S3 object storage, and running Kubernetes containers.

1. Native OpenSSH SFTP v3 Engine

Feature: Subsystem Execution via System OpenSSH

🎯 Purpose

Replace vulnerable JavaScript SSH libraries with the operating system's native OpenSSH client to ensure uncompromising cryptographic security, hardware token compatibility, and seamless proxy routing.

🛠️ How to Use

1. Launch the file manager via Ctrl+Shift+F or double-click an SFTP profile.
2. Navigate via keyboard (Tab switches active pane, Enter enters directories or opens files, Backspace ascends to parent folder).
3. Drag and drop files between panes or directly from your workstation's desktop.
4. Manage permissions via right-click → Permissions (chmod) with octal (e.g. 0755, 0644) and symbolic checkboxes.

Keyboard Ergonomics & Spatial Navigation

The file manager is designed to be fully operable without a mouse:

• Spatial Navigation (Ctrl+Shift+Arrows):

- Ctrl+Shift+Left / Right: Toggles focus directly between the left and right file pane. - Ctrl+Shift+Up: Shifts focus up to the Tab Bar (where Left/Right switches active workspace tabs, and Down or Enter returns focus into the file pane). - Ctrl+Shift+Down: Returns focus from the toolbar directly into the active pane's file list.

• In the File List:

- Up / Down: Moves selection up and down. - Enter: Enters the selected folder or opens the file in the built-in viewer (focus remains in the file list). - Escape: Clears the current selection.

⚠️ Limitations & Caveats

• SFTP v3 does not natively support advanced POSIX Access Control Lists (ACLs) within the protocol frame.
• Exceptionally large directory listings (>100,000 files) may take a few seconds to parse depending on network latency.

⚙️ Technical Internals & Architecture

SFTPStorageProvider (src/main/storage/SFTPStorageProvider.ts) spawns the OpenSSH client in subsystem mode:

ssh <args from SmartcardDetector> -o BatchMode=no -s -- [user@]host sftp

• SftpPacketProtocol processes binary SFTP v3 packets (SSH_FXP_INIT, SSH_FXP_OPEN, SSH_FXP_READ, etc.).
• SftpStreams delivers ReadableStream and WritableStream with Node.js backpressure management, preventing memory exhaustion over saturated links.
• Hardware token touch prompts and smartcard PIN requests are handled transparently via the app's AskpassServer.

2. In-Memory Streaming Across Storage Providers

sshs3 implements a unified IStorageProvider abstraction for all storage backends:

flowchart LR
    SFTP["SFTP Server (OpenSSH)"] <--> |In-Memory Stream| Pipeline["TransferPipeline & ByteMeter"]
    S3["S3 Bucket (AWS/MinIO)"] <--> |In-Memory Stream| Pipeline
    Local["Workstation Local Disk"] <--> |In-Memory Stream| Pipeline
    K8s["Kubernetes Pod Container"] <--> |In-Memory Stream| Pipeline

Feature: Zero Disk Staging Transfers

🎯 Purpose

Enable direct file transfers between disparate storage systems (e.g., from an SFTP server directly to an Amazon S3 bucket, or from a Kubernetes pod to a local disk) without writing intermediate staging files to your workstation's hard drive.

🛠️ How to Use

• Open an SFTP server in the left pane and an S3 bucket in the right pane.
• Select files and press F5 (Copy) or drag and drop across panes.
• The transfer queue dock at the bottom displays progress, speed (MB/s), and estimated time to completion.
• Transfers can be paused and resumed at any time.

⚠️ Limitations & Caveats

• Data streams through your workstation's network interface; transfer speed is bound by the slowest link.
• Suspending your workstation suspends the stream.

⚙️ Technical Internals & Architecture

TransferPipeline (src/main/transfer/TransferPipeline.ts) pipes the source createReadStream() into the target createWriteStream(). ByteMeter calculates transfer velocity using a sliding 100ms window. PauseController suspends the Node.js stream flow without terminating underlying TCP sockets.

3. Conflict Resolution

When a destination file already exists, sshs3 presents an interactive collision dialog:

• Overwrite: Overwrites the existing destination file.
• Skip: Skips the file and advances the queue.
• Rename: Automatically saves the file under a new name instead of replacing the existing one.
• Apply to all remaining conflicts in this transfer: Applies the chosen action to all subsequent conflicts in the batch.

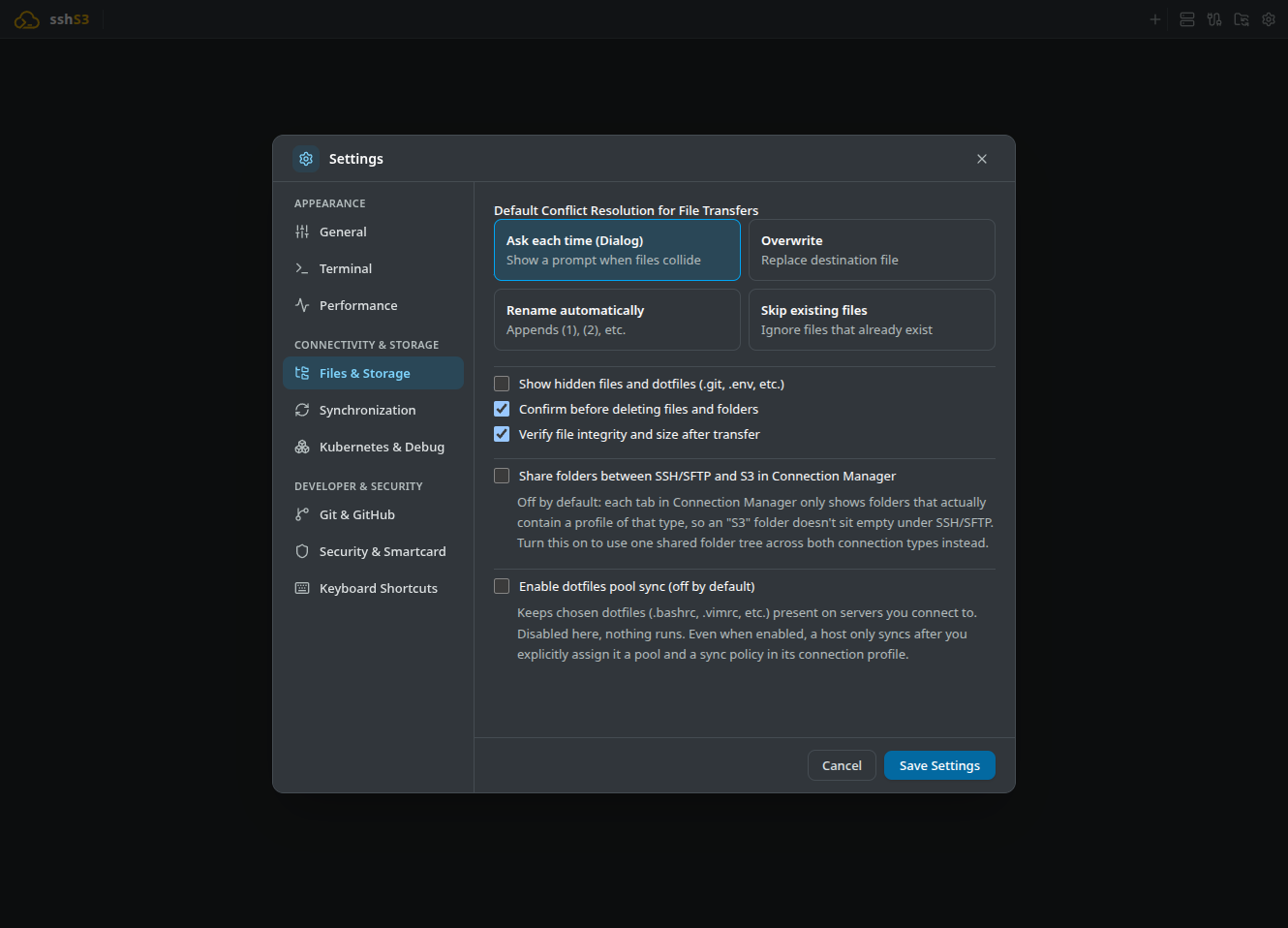

Under Settings → Files & Storage → Default Conflict Resolution for File Transfers you can choose Ask (the default), Overwrite, Skip or Rename so the dialog does not appear. Transfers in the queue can be paused, resumed and cancelled.

4. Directory Diff & Synchronization Engine

Feature: Directory Synchronization

🎯 Purpose

Compare a source directory with a target directory (on the same or different servers) and synchronize the differences, with a diff preview before anything is copied.

🛠️ How to Use

1. Right-click a folder and select Sync to..., then pick the target folder. The Sync Directory dialog opens with the Source and Target.
2. Review the diff:

- New on source: will be copied to the target. - Modified: will overwrite the target (newer target files are flagged). - Only in target: kept by default (safe sync). - Identical: nothing to do.

1. Optionally tick Enable mirror (delete extraneous files in target) to also delete files that exist only in the target. Deletions happen only for the files you select.
2. Run the sync. Enter a Profile name to save the configuration as a saved sync profile; saved profiles are listed under Saved Sync Profiles, where Compute diff and run sync repeats them.

⚠️ Limitations & Caveats

• The sync is one-way, from source to target.
• Files are compared by size and modification time, with a fixed 2-second tolerance because SFTP and S3 backends truncate timestamps and clocks drift.

⚙️ Technical Internals & Architecture

DirectorySyncService (src/main/dirsync/DirectorySyncService.ts) traverses directory hierarchies in memory, categorizes files, and enqueues sync tasks through TransferQueue.

5. Built-in Editor, Live Log Tail & External Editor

Feature: In-App Editing, Live Markdown & tail -f

🎯 Purpose

Inspect and modify remote files or monitor server logs without launching an external editor or switching to a terminal window.

🛠️ How to Use

• Built-in Editor: Double-click or press Enter on a text file to open it in the built-in viewer. Press Ctrl+S to save directly back to the remote server. For documentation files, toggle the Source / Preview switch for an instant live-rendered Markdown preview.

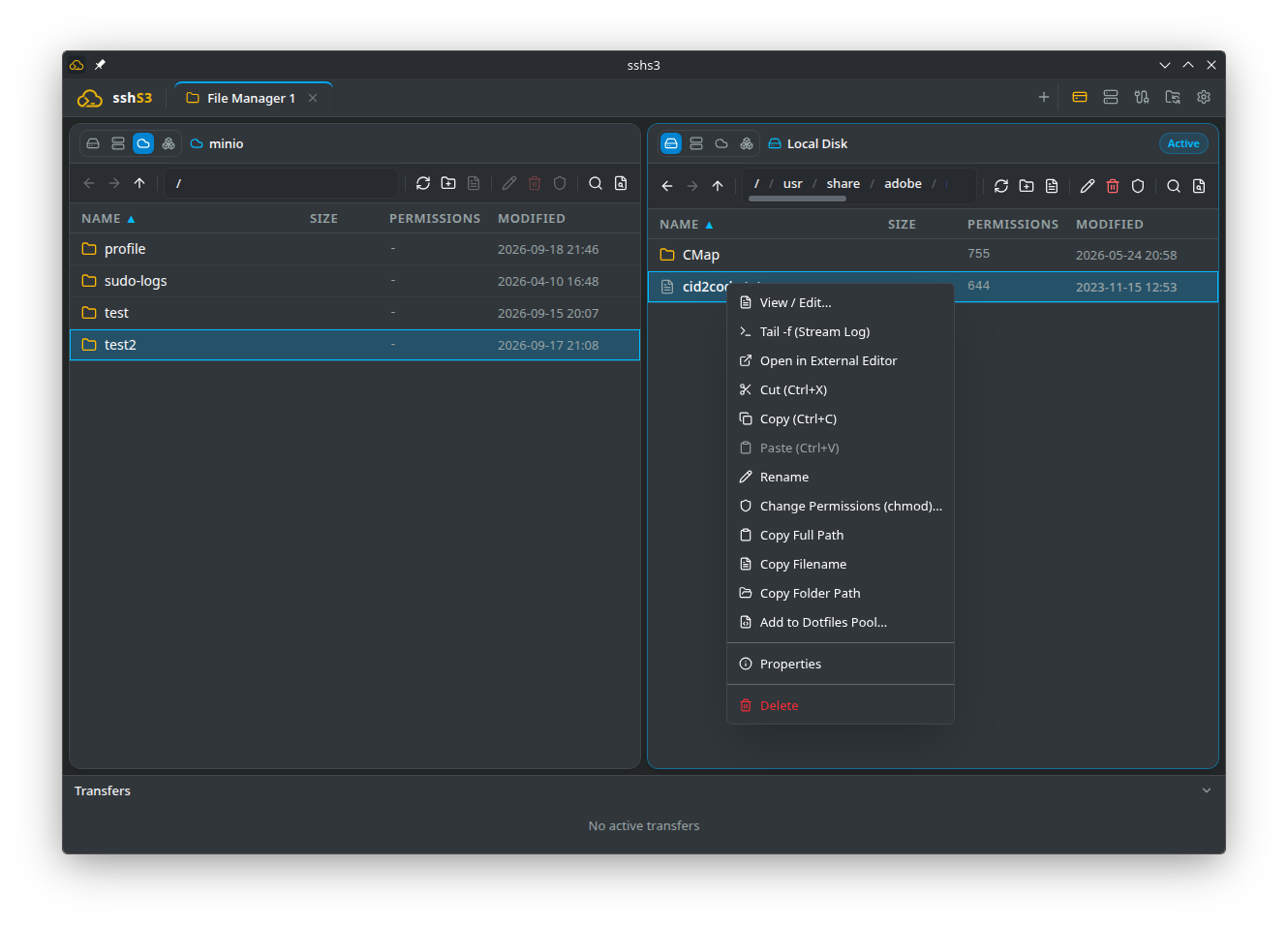

• Live Log Tail: Right-click a growing log file (e.g. access.log, app.log) and select Tail -f (Stream Log). The editor streams new lines in real time and is read-only while tailing; click Stop Tail -f to end the stream.
• External Editor: Right-click any file and select Open in External Editor. The file opens in your local desktop IDE (VS Code, Neovim, Sublime). Press Ctrl+S locally, and sshs3 automatically detects the file write and streams updates back to the server in the background!

⚠️ Limitations & Caveats

• The built-in editor is optimized for lightweight text/markdown editing without heavy syntax trees. For complex multi-file projects, use External Editor hand-off.
• External editors must save files in place without breaking filesystem inode watches.

⚙️ Technical Internals & Architecture

FileEditorService downloads target files into an isolated temporary directory with 0700 permissions, launches the local application via Electron shell.openPath(), and registers an fs.watch event listener. When change events fire, modified buffers stream back across TransferPipeline.

6. Git Integration in the File Manager

Feature: Visual Git Status & SFTP Repository Management

🎯 Purpose

Inspect Git repository status, pull updates, or clone repositories directly within remote SFTP folders without opening a separate terminal session.

🛠️ How to Use

1. When browsing a folder containing a .git directory (locally or over SFTP), sshs3 automatically detects the repository:

- Branch & Status Indicator: Displays active branch, uncommitted/untracked changes, and commit delta ahead (↑) or behind (↓) origin. - Git Pull: Click the pull icon to synchronize the remote repository with upstream in a single click. - Open in GitHub/GitLab: Opens the repository homepage in your default browser when remote.origin.url is configured. - Clone Git repository here...: Right-click any folder to clone a repository with optional shallow-clone depth (--depth=1).

1. Git polling can be toggled on or off under Settings → Git & GitHub to eliminate background network checks on constrained servers.

⚠️ Limitations & Caveats

• Remote Git operations over SFTP require git to be installed on the remote server.

⚙️ Technical Internals & Architecture

Driven by GitStatusService (src/main/git/GitStatusService.ts) and RemoteGitService (src/main/git/RemoteGitService.ts). Remote status inspections run non-blocking git status --porcelain=v2 commands over the ControlMaster channel.

7. Troubleshooting & Diagnostics Runbook
