Terminal, Split Panes & Ergonomics

Terminal & Workspace Ergonomics

The terminal engine in sshs3 pairs hardware-accelerated web rendering via xterm.js with your operating system's native OpenSSH client process via node-pty. Unlike clients relying on JavaScript SSH emulators, all native OpenSSH options, configuration files, smartcards, and command-line habits function identically to your standard terminal.

1. Native OpenSSH Engine via node-pty

Feature: Real OpenSSH Binary Execution

🎯 Purpose

Deliver 100% fidelity with the system OpenSSH stack (~/.ssh/config, ProxyCommand, Match directives, token agents, FIDO2, Kerberos/GSSAPI) without the regressions common to JavaScript reimplementations.

🛠️ How to Use

• Launch any SSH profile or press Ctrl+Shift+T to open a new terminal session.
• Features ANSI/VT100/VT220 emulation, 24-bit TrueColor, and mouse tracking (in htop, mc, tmux, nvim).
• Adjust font size on the fly per tab using Ctrl++, Ctrl+-, and Ctrl+0 (reset).

⚠️ Limitations & Caveats

• Requires an OpenSSH client binary (ssh) accessible in system $PATH.
• On Windows, the optional OpenSSH Client feature must be active (enabled by default in Windows 10/11).

⚙️ Technical Internals & Architecture

SSHPtyManager (src/main/ssh/SSHPtyManager.ts) allocates a pseudo-terminal (PTY) via native C++ bindings provided by node-pty. It invokes ssh in an isolated session. Data streams pass through Electron IPC (IPC_CHANNELS.TERMINAL_DATA, IPC_CHANNELS.TERMINAL_WRITE, IPC_CHANNELS.TERMINAL_RESIZE).

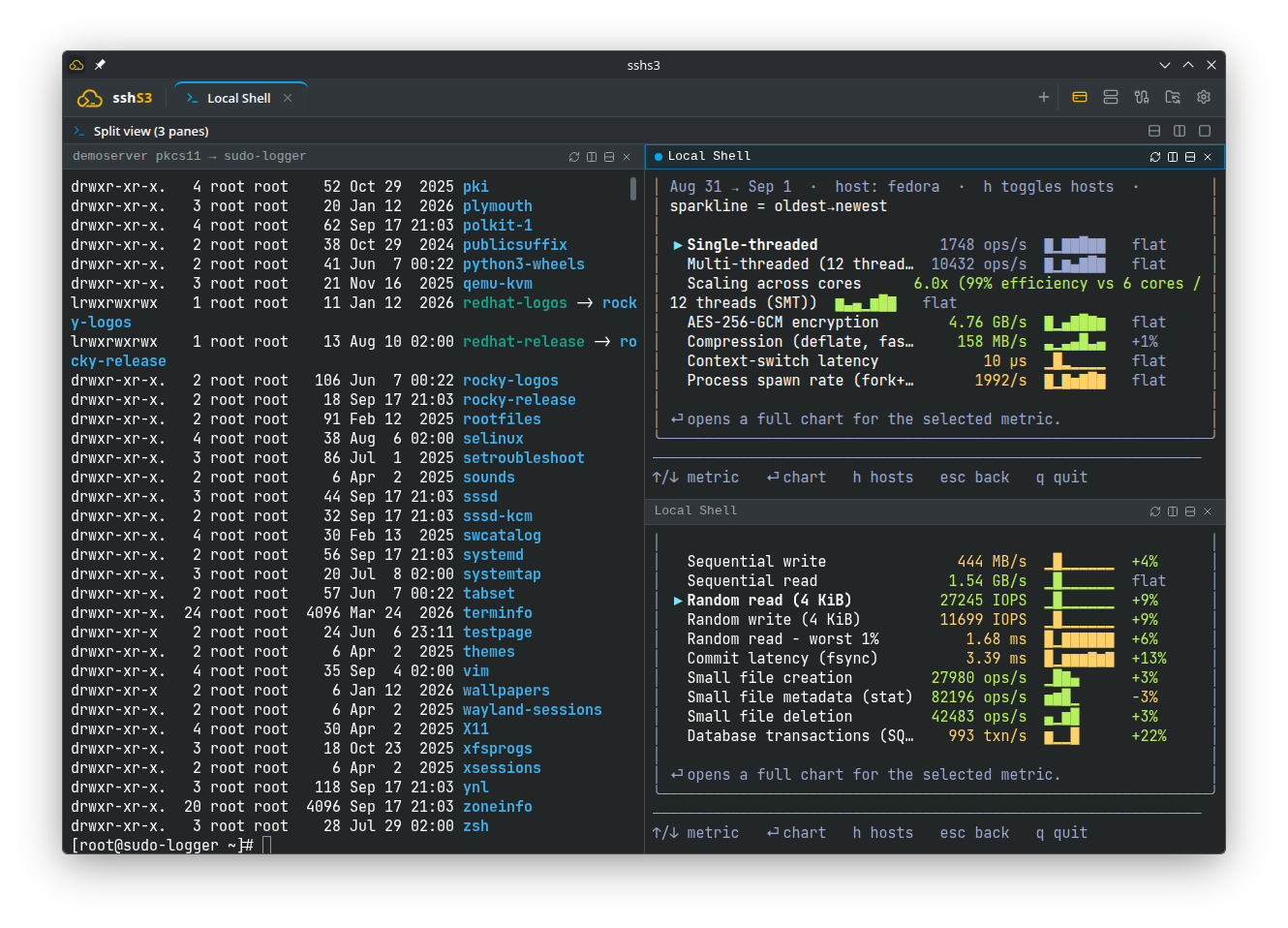

2. Konsole-Style Recursive Split Panes

sshs3 implements non-destructive recursive pane splitting modeled on KDE's Konsole (ViewSplitter):

Feature: Non-Destructive Split Layouts

🎯 Purpose

Allow operators to split workspace real estate horizontally and vertically without disrupting existing sessions, interrupting running background commands, or losing scrollback buffers.

🛠️ How to Use

1. Split Vertically: Press Ctrl+Shift+D or click the vertical split icon on the pane's mini-toolbar.
2. Split Horizontally: Press Ctrl+Shift+E or click the horizontal split icon.
3. Keyboard Navigation Between Panes:

- Directional Spatial Navigation (Ctrl+Shift+Arrow Keys): Shifts focus in the direction of the arrow. Pressing Ctrl+Shift+Up from the top row moves focus directly into the Tab Bar (where Left/Right switches active tabs, and Down or Enter returns focus into the active terminal pane). - Sequential Cycling: Use Ctrl+Shift+N (next pane in tree) and Ctrl+Shift+P (previous pane).

1. Close a Pane: Click the close button on its mini-toolbar or type exit. The tree automatically collapses to fill the remaining area.
2. Unsplit (Maximize): Click the "Unsplit" icon on the active pane to keep the focused session and close all siblings.

⚠️ Limitations & Caveats

• Splitting a terminal too many times on smaller displays can reduce column width below 40 characters, causing line wrapping in wide tabular tools.
• Each pane runs an independent SSH or shell process with its own memory allocation.

⚙️ Technical Internals & Architecture

Splitting a pane does not recreate or restart the underlying PTY session. The active DOM node is reparented into a new split container within React's layout tree (SplitTree.tsx), leaving the underlying Node.js PTY process completely uninterrupted.

3. Local Shells & Intelligent SSH Agent Management

In addition to remote SSH hosts, sshs3 allows opening local terminal tabs executing directly on your workstation (bash, zsh, fish, pwsh, WSL).

Feature: Managed SSH_AUTH_SOCK Injection & AgentLifecycleManager

🎯 Purpose

Provide integrated access to local workstation shells with immediate single sign-on access to smartcards, YubiKeys, and SSH keys already unlocked within sshs3.

🛠️ How to Use

Configure the Local Terminal SSH Agent behavior under Settings → Terminal:

• Auto (Default): If Global PIN caching is active, local shells automatically inherit the app-wide AppAgent socket. Unlocked smartcards and FIDO2 keys are instantly available for local git, ssh, and terraform commands! If Global caching is not active, it uses the system/login-shell agent, or starts an app-managed private agent.
• System Only: Strictly inherits your existing desktop $SSH_AUTH_SOCK (e.g. gpg-agent or systemd-user ssh-agent) and never starts an app agent.
• Disabled: Wipes SSH_AUTH_SOCK and SSH_AGENT_PID completely from the spawned shell environment.

⚙️ Technical Internals & Architecture

AgentLifecycleManager probes for a running agent (or Windows OpenSSH Agent service). In auto mode under Global PIN caching, the app-wide agent (AppAgent) always takes precedence on a stable socket ($XDG_RUNTIME_DIR/sshs3/agent.sock or /tmp/sshs3-agent-/agent.sock). Because the socket path is stable, local terminal tabs opened before unlocking a smartcard can immediately use the card once unlocked without reopening the tab!

🛠️ How to Use

• Click the "+" icon in the tab bar and select Local Shell.
• Under Settings → Local Terminal SSH Agent, configure socket injection behavior:

- Auto (Default): Priority resolution order: (1) App-wide smartcard agent (AppAgent) under Global PIN caching, (2) App's managed agent process, (3) System inherited agent ($SSH_AUTH_SOCK), (4) Newly spawned managed agent. - System Only: Strictly uses the inherited environment socket; never spawns or overrides with app agents. - Disabled: Injects no SSH_AUTH_SOCK variable.

⚠️ Limitations & Caveats

• SSH_AUTH_SOCK is resolved and injected at the moment the local process is spawned. A shell tab opened before a smartcard is unlocked will not inherit the card unless Global PIN caching was already active.

⚙️ Technical Internals & Architecture

Managed by AgentLifecycleManager (src/main/ssh/AgentLifecycleManager.ts). Under Global PIN caching mode, the socket points to AppAgent, a dedicated local socket proxy that multiplexes SSH signing requests directly through unlocked hardware cards.

4. Terminal Productivity & Ergonomics

4.1 Scrollback Buffer Search (Ctrl+Shift+S)

• Opens an overlay search bar with match count indicator (e.g. 3/6). Matches update dynamically as you type.
• Step through occurrences forward with Enter and backward with Shift+Enter. Close the bar with Esc.
• Highlight colors adapt to the active theme (Breeze, Light, Dark). The active match is highlighted distinctly.
• Stepping through matches highlights text without triggering Copy-on-Select.

4.2 Clickable URLs and File Paths (Ctrl+Click)

Hold Ctrl (Cmd on macOS) and click:

• Web URLs: Any http:// or https:// link opens in your workstation's default browser (supported in terminals and Kubernetes log streams).
• Remote File Paths: Clicking a file or directory path in an SSH terminal (e.g. /var/log/syslog, ~/notes.md, /srv/app.py:42:7) immediately opens that folder in a new SFTP file manager tab!

- Because terminal emulators cannot distinguish directories from files without filesystem access, clicking a file path without a trailing slash opens its containing parent directory. - Tilde paths (~/) resolve automatically to /home/ (or /root). - The SFTP tab always connects using the pane's underlying profile credentials, even if you hopped to another host using ssh inside the terminal. - Note: Paths are not clickable in local shell or Kubernetes exec terminals.

4.3 Saved Command Snippets Palette (Ctrl+Shift+L)

• Searchable palette of pre-saved shell commands and runbooks.
• Enter types the command into the prompt; Ctrl+Enter types and executes it immediately. Multi-line snippets are pasted as an atomic batch.
• Manage snippets with New, pencil (edit), and bin (delete). Snippets can be scoped to the current profile or made globally accessible.
• Dynamic variables: {{host}}, {{user}}, and {{date}} (formatted as yyyy-mm-dd HH:mm).
• Security Note: Snippets are saved unencrypted in snippets.json. Do not store passwords or API secrets in snippets!

4.4 Copy Last Command Output (Ctrl+Shift+G)

• Copies the terminal output of the immediately preceding command without manual mouse selection.
• A toast notification confirms how many lines were copied to clipboard.
• Exact: In modern shells emitting OSC 133 semantic prompt marks (fish, and zsh/bash with shell integration).
• Heuristic Fallback: In standard shells, infers command boundaries from Enter keypresses. Full-screen terminal programs (vim, less, htop) are ignored.

4.5 Encrypted Clipboard History (Ctrl+Shift+R)

• When Copy text automatically on selection is enabled, every highlighted string is stored in an encrypted history ring.
• Press Ctrl+Shift+R or right-click to search and paste previous selections (↑/↓ navigate, Enter pastes).
• Shift+Insert and middle-click paste the latest entry.
• Encrypted at rest via the OS keyring (safeStorage). If the OS keyring is unavailable, history is retained in volatile memory only. Can be scoped per connection or configured to purge on application exit.

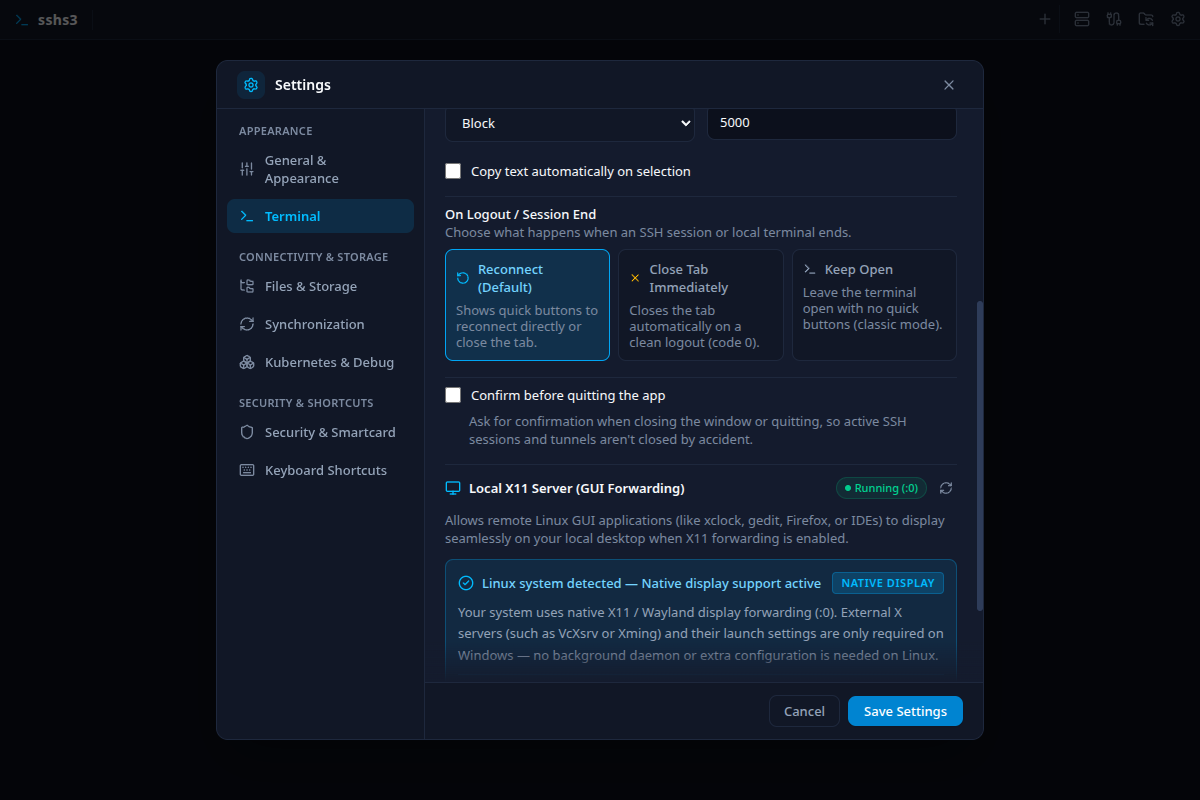

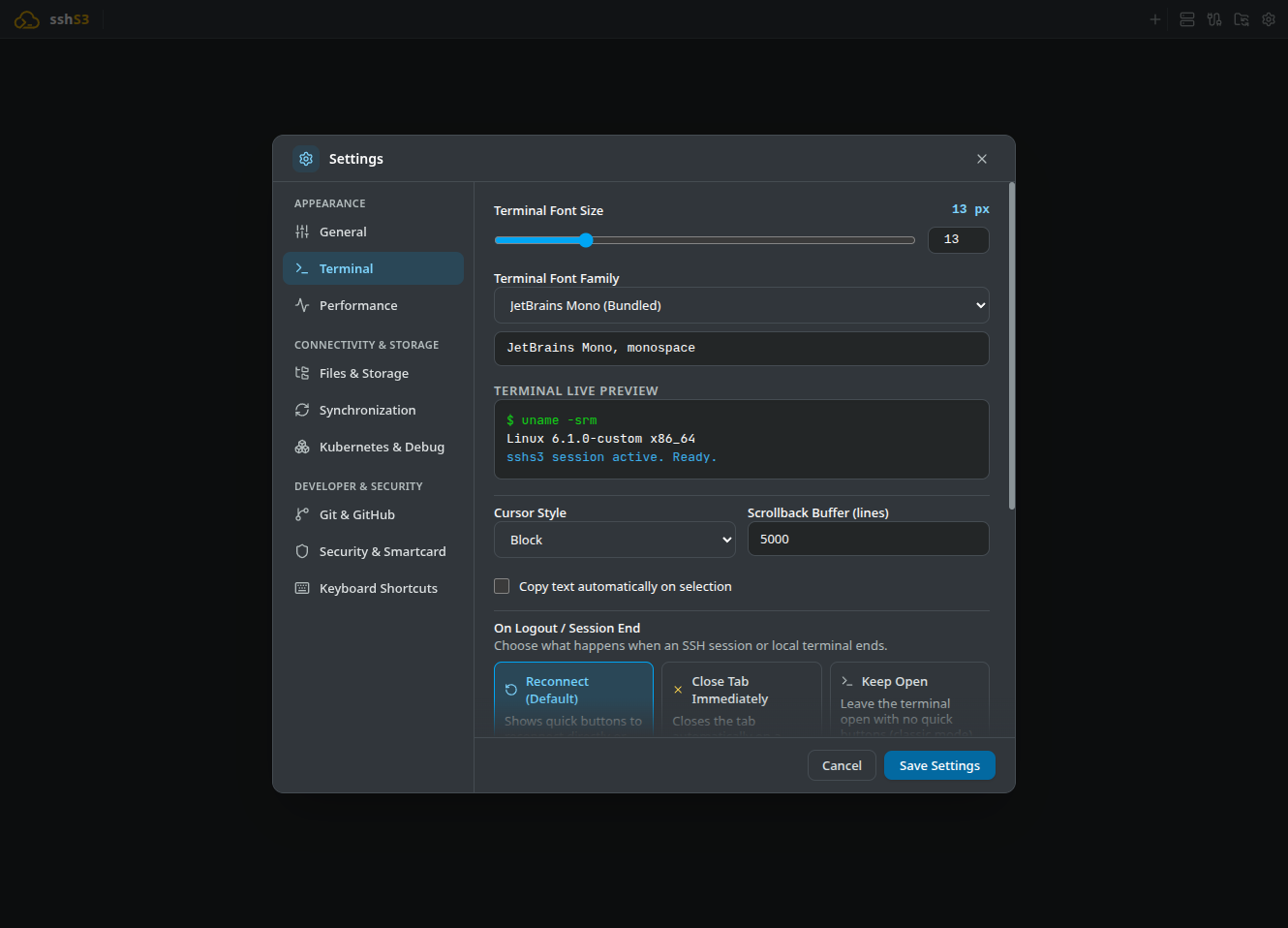

4.6 Terminal Settings Reference Table

5. Troubleshooting & Diagnostics Runbook
